Tavol Double Girder Gantry Crane Hoist Trolley

Compartir con:

Tavol Double Girder Gantry Crane Hoist Trolley

Overhead Gantry Crane Hoist Trolley for Double Girder Type Overhead Gantry Crane
Double girder electric hoist trolley is widely used in double girder bridge crane and double girder gantry crane to be treated as the lifting and cross travel mechanism. It is mainly composed of fixed electric hoist, trolley, motor, brake, buffer, wheel, etc.

Estado de Disponibilidad:

Cantidad:



Preguntar Añadir al carrito

Modelo:
LHE Model Hoist Trolley
Marca del producto:
Tavol
Código De Producto:
051

Product Description

Product Description

Tavol Double Girder Gantry Crane Hoist Trolley

As the most widely used lifting device, wire rope electric hoist has always been the first choice for light and small lifting as the most commonly used equipment, then a suitable for various working conditions and environments, to meet the needs of various countries and regions of electric hoist, has become inevitable, as this, Tavol Brand Euro Design wire rope hoist was born, Heritage FEM. European standard design concept, do our best to create higher value for customers, truly save more raw materials for customers, reduce more maintenance costs, TAVOL services to promote industrial development.

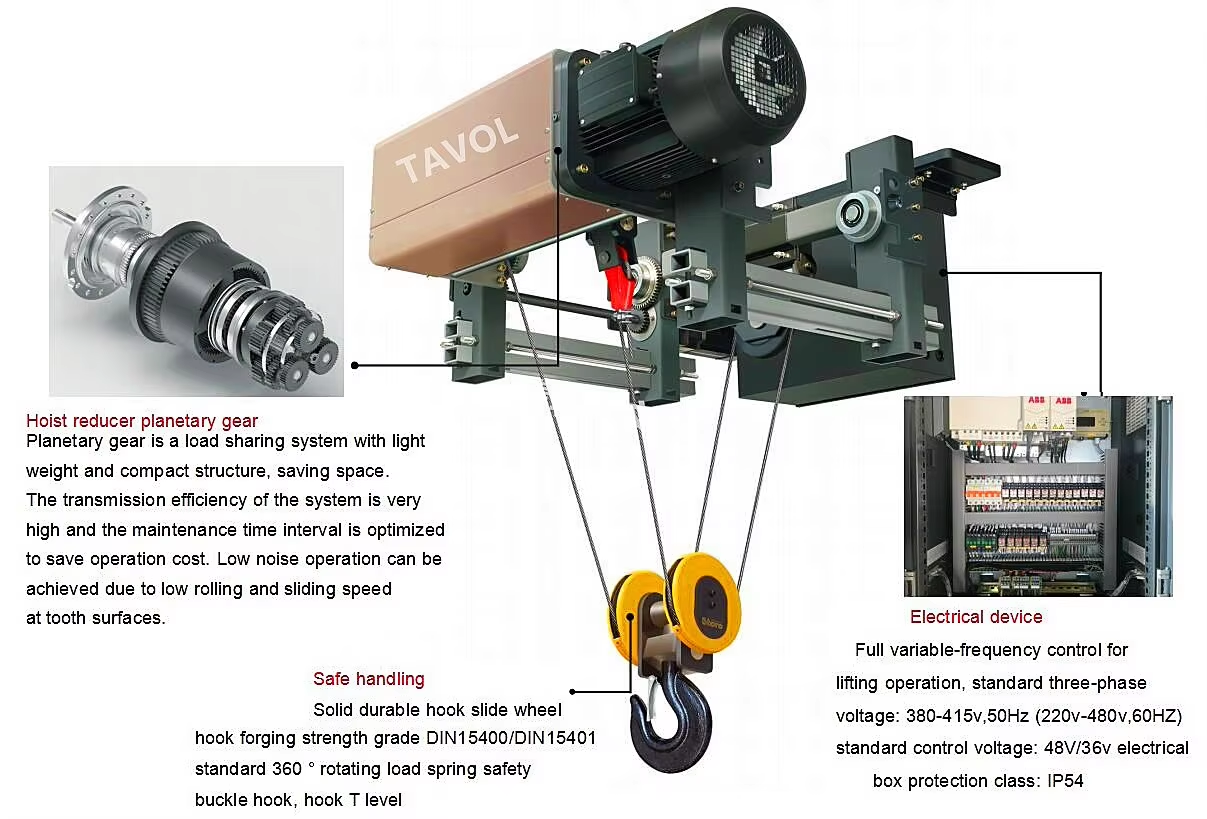

Hede9d36cf4184342bea27169e7bff3dft

Selection table for double beam steel wire rope electric hoist

Rated Load Capacity t		Work duty FEM	Work Duty ISO	Lift Height m	Lift Speed M/min	Trolley speed M/min
3.2T	2m		M5	6/9/12/15/18	0-5.0	0-20
3.2T	2m		M5	6/9/12/15/18	0-8.0	0-20
5T	2m		M5	6/9/12/15/18	0-5.0	0-20
5T	2m		M5	6/9/12/15/18	0-8.0	0-20
8T	2m		M5	6/9/12/15/18	0-4.0	0-20
8T	2m		M5	6/9/12/15/18	0-4.5	0-20
10T	2m		M5	6/9/12/15/18	0-4.0	0-20
10T	2m		M5	6/9/12/15/18	0-5.0	0-20
12.5T	2m		M5	6/9/12/15/18	0-4.4	0-20
12.5T	2m		M5	6/9/12/15/18	0-5.0	0-20
16T	2m		M5	6/9/12/15/18	0-4.4	0-20
16T	2m		M5	6/9/12/15/18	0-5.0	0-20
20T	2m		M5	6/9/12/15/18	0-3.6	0-20
20T	2m		M5	6/9/12/15/18	0-5.0	0-20
25T	2m		M5	6/9/12/15/18	0-2.8	0-20
25T	2m		M5	6/9/12/15/18	0-3.8	0-20
32T	2m		M5	6/9/12/15/18	0-2.8	0-20
32T	2m		M5	6/9/12/15/18	0-3.8	0-20
50T	2m		M5	6/9/12/15/18	0-3.0	0-20
50T	2m		M5	6/9/12/15/18	0-4.0	0-20

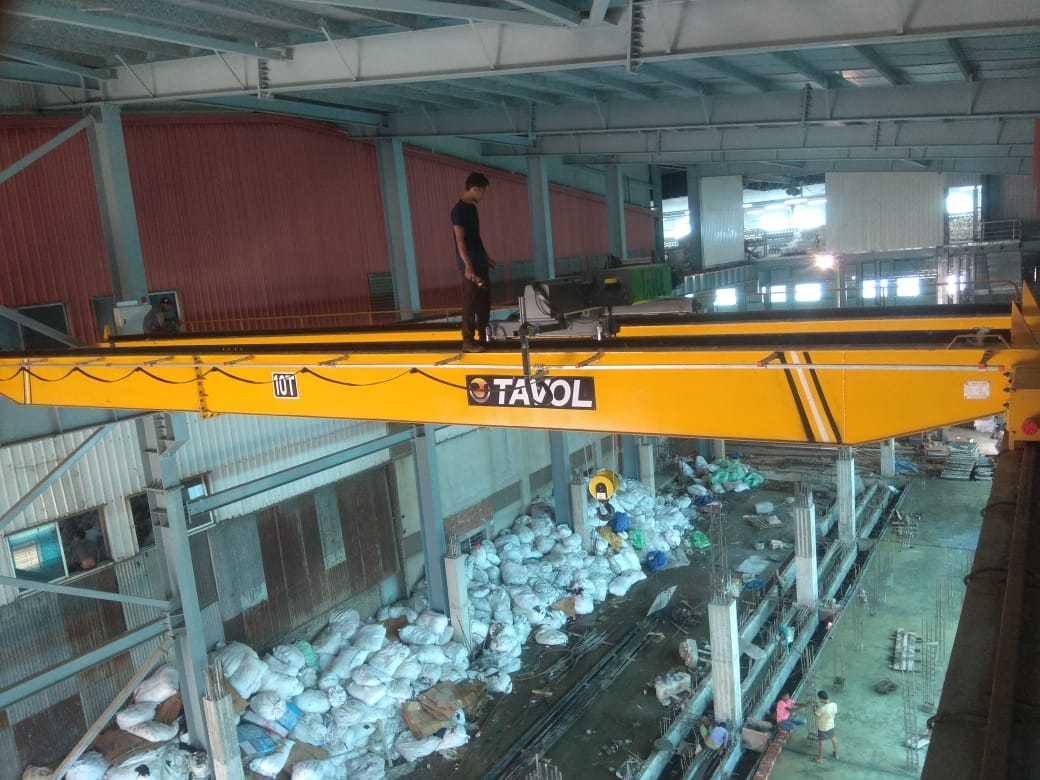

Successful Projects

微信图片_20200822141014

QQ图片20200827103941

Company Intructions

Shandong Tavol Machinery Co., Ltd has been specialized in delivering one stop overhead crane solutions to worldwide customers for 30 years. Our high quality products include single girder overhead crane, double girder overhead crane, single girder gantry crane, double girder gantry crane, etc. Product innovation, quality assurance and customer satisfaction are our long term commitment to all of our partners. All of our products passed ISO9001, CE and PVC

RFQ

In order to give you correct quotation ,Please let us know the following Specification :

1.load capacity:?

2.lifting height:?

3.Fixed or running：?

4.local voltage：？

5.working environment:?

Feel Free to contact us at anytime, Hope can become your partners in the near future,
